WZU-52

Overview

  • GPRS communication for Landis+Gyr UH50 meters.

Customer segment

  • Heating companies.
  • Heat distribution network operators.
  • Industrial enterprises.
  • Local heat distributors.

Description

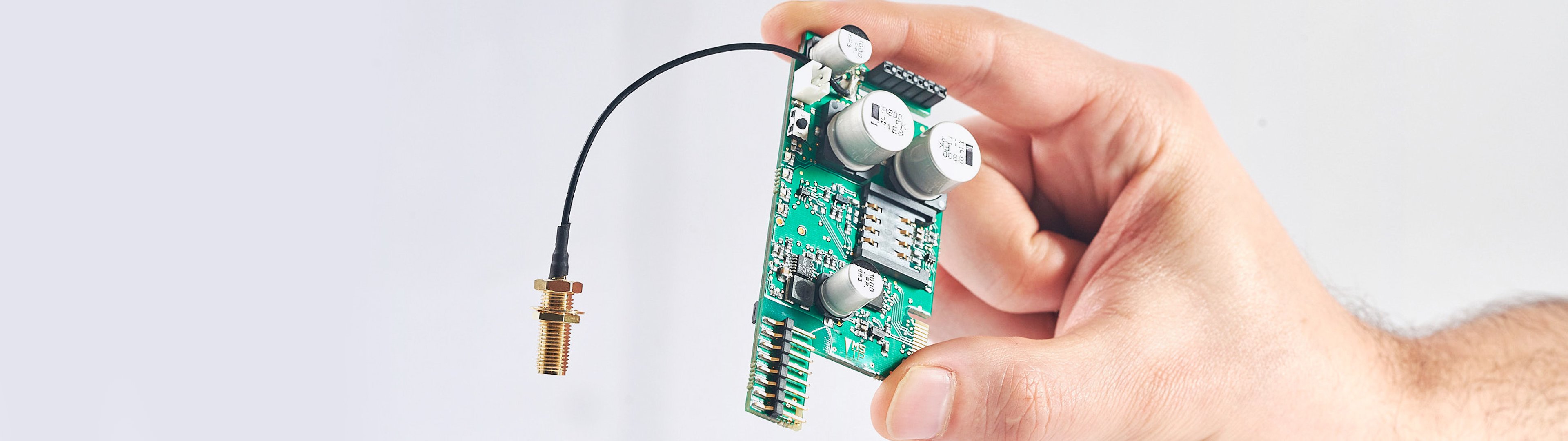

WZU-52 is an intelligent communication module designed installation in UH50 heat meters from Landis+Gyr. The module is designed for transmission of measured values using the GPRS 2G/3G telecommunication network. Furthermore, the device can be supplemented with a WZU-MM sub-module, making it possible to ensure communication with four other meters with the M-BUS interface.

Key properties:

  • consumption monitoring,
  • immediate reporting of anomaly detection,
  • create consumption profiles and parameters of supplied energy from measured data,
  • flexibility of the scope and frequency of transmitted data,
  • remote parameterization,
  • connect up to 4 other devices,
  • power supply from either battery or an inert meter source,
  • advanced management of battery lifetime - up to 8 years,
  • simple integration into any customer's IT solution,
  • supported by the EMS e-PointWEB solution.


Technical specification

GPRS communication unit designed for UH50 heat meters from Landis+Gyr.

    Additional modules

    WZU-52-S(XL)

    WZU-52 is an intelligent communication module designed for installation in Landis+Gyr UH50 heat meters. The module is designed for the transmission of measured values ​​using the GPRS 2G/3G telecommunication network.

    WZU-52-RS485

    WZU-52-MM expands usage possibilities of communication modules WZU-52 and WZU-62.

    WZU-MM

    The M-BUS expansion master interface for the WZU-52 and WZU-62 modules allows the connection of four more meters with the M-BUS communication interface.



    Accessories

    WZU-G-PORT (parameterization converter)

    The WZU-G-PORT is an accessory for modules WZU-52, WZU-52-S, WZU-62, WZU-62-S. It consists of a cable with converter that’s used for complete module parameterization via PC and parameterization software for Windows 7 and up.

    WZU-PROG (docking station)

    WZU-PROG is an accessory for the WZU-52, WZU-52-S, WZU-62, WZU-62-S modules enabling parameterization, firmware recording, reactivation, and diagnostics of modules. It’s a docking station for connecting the WZU module to a PC and utility software for service interventions on the module.
